General Description

The iML8692CFA is an LED current controller with line regulation compensation for operating over a wide alternative current (AC) voltage source range and with active load controller for phase cut dimmable function. It can drive an external N-channel power MOSFET to regulate the current flowing through a high voltage (HV) LED string and provide the holding current for the phase cut dimmer.

The application of the iML8692CFA is configured in series with an LED string, working as a constant current sink with over voltage protection (OVP), over temperature protection (OTP), and line regulation compensation. Active load function is included to improve the phase-cut

dimming performance. It is suitable for applications with a rectified AC voltage source.The PCB layout is also very flexible to meet various shape requirements. It is especially suitable for replacingincandescent light bulb and linear type fluorescent lamp.

Features

Device

- Active load current and LED string current control from single device.

- Excellent system power regulation over AC line variation range.

- 6V to 76V chip supply voltage range.

- Over temperature protection.

- Over voltage protection.

System

- All solid state components available.

- Driver-on-board and chip-on-board design solution available which minimize process flow and assembly cost.

- High PF and Low THD performance.

- Flexible PCB layout options.

-  Active load for phase-cut dimming operation

Applications

A series LED bulbs

Candelabra LED bulbs

LED light tube

LED down lights

LED ceiling lamps

AC LED lighting engines

Ordering Information

Package  Part Number  (Tape & Reel)

Cut-off Function at

Low Dimming Phase

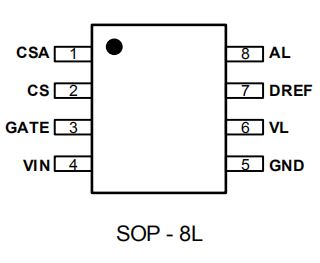

SOP–8L  iML8692CFA-TR  No
