General Description

ICNE2521DE-A/DS-A/DT-A is a single channel high voltage linear constant current LED driver, which integrates 500V high voltage MOS.

ICNE2521DE-A/DS-A/DT-A output current can be set through an external resistor between 3mA and 100mA, the current precision can reach ±3%.

ICNE2521DE-A/DS-A/DT-A  built-in negative temperature compensation function, help to improve the source regulation of the linear power supply system, the built-in negative temperature  compensation  function  can effectively prevent damage to the system caused by sudden temperature changes.

ICNE2521DE-A/DS-A/DT-A  system  has simple peripherals, flexible application, high reliability, small volume, low system BOM cost, adjustable packaging technology can be applied to all kinds of LED lamps.

Features

Constant current control technology.

System efficiency up to 93%.

Programmable output current.

±3% LED current accuracy.

Temperature compensation improves the source regulation.

NO EMI issue.

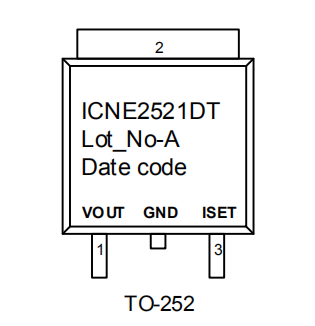

eSOP-8L, SOT-89-3L, and TO-252-2L packages available.

Applications

LED T8/T10 Tube

LED Bulb, Candle Light

LED Ceiling Light

Landscape lamp

LED Down light

Other LED lighting

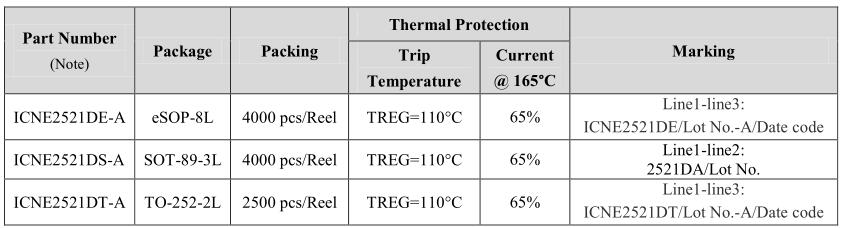

Ordering Information
