General Description

The ICL3201 is a single stage step-down type constant current LED driver with power factor correction.

The ICL3201 is supplied from the line directly without auxiliary winding or external VDD capacitor, so the system BOM cost and size are minimized. It also provides precise output current control and digital compensation technology to ensure high output current accuracy and high power factor.

The ICL3201 offers various protection functions to improve the system reliability, including LED open circuit protection, LED short circuit protection, and over-temperature protection.

Features

No auxiliary winding and VDD capacitor needed.

Supplied from line voltage directly.

Internal compensation PFC technology.

Excellent line/load regulation.

High current accuracy.

High efficiency over wide operating range.

Integrated HV power MOSFET.

LED open/short protection.

Over-temperature protection.

Applications

Non-isolation Offline LED driver

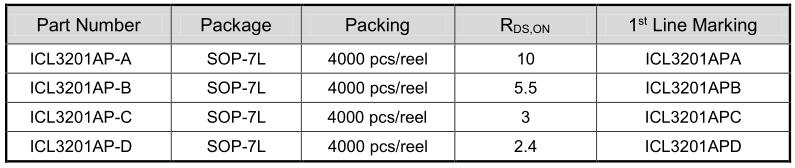

Ordering Information
