General Description

ICL1402 is a high voltage linear constant current LED driver for phase–cut dimmable application, which integrates 550V high voltage MOS. The phase-cut dimmer holding current and the LED driving current can be set through the external resistors between 5mA and 100mA.

ICL1402 built-in linear type thermal protection function to effectively prevent damage to the system caused by high temperature.

ICL1402 system has simple peripherals, flexible application, high reliability, small volume, and low system BOM cost. Various package types can be applied to all kinds of LED lamps.

Features

550V/ 100mA HV NMOS integrated.

Phase-cut dimmable constant current control technology.

Linear type thermal protection function.

NO EMI issue.

Applications

LED Bulb, Candle Light

LED Ceiling Light, LED Down light

Other LED Lighting

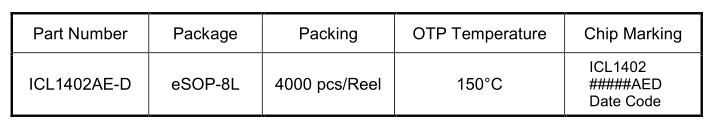

Ordering Information
